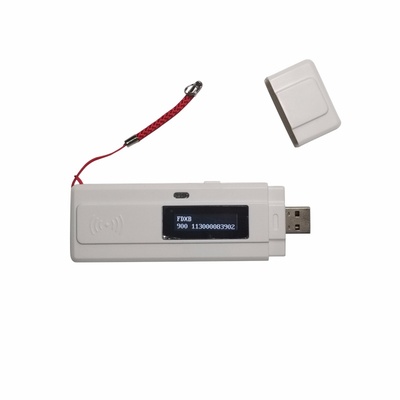

The Pocket Reader RFH100 is the smaller RFID reader known today. In spite of its very small size the reading range is equal or even greater than other bigger models and more expensive. RFH100 can read all the tags that meet ISO11784/5 FDX-B and EM ID standards. Data storage of 128 ID records. After reading some RFID tags, it can display the information while storing data. LCD indication, blue LED display. User can transmit the information to the PC automatically through USB. Includes a handheld(rechargeable lithium battery), USB connector.
SPECIFICATIONS:
| Model | RFH100 |
| Parameter | Frequency: 134.2kHz |
| Reading Standard: ISO11784/5 FDX-B, EMID |
| Data Storage: 128 records |
| Communication Mode: USB |
| Reading Distance: ≥7cm |
| Screen | Size: 1.04” 128*32OLED |
| Read indication | Beep, Blue LED, LCD indication |
| Dimensions & Weight | Product Size: 110*34*14mm, 41.5g |
| Package Size: 180*90*40mm, 81g |
| Power Supply | Charging indication: Red LED in charging. Green LED when complete |
| Charging current: <200mA, 5VDC on USB connector |
| Work Current | <60mA |
| Power Supply | 4.5V( lithium battery) |
