Product Detail

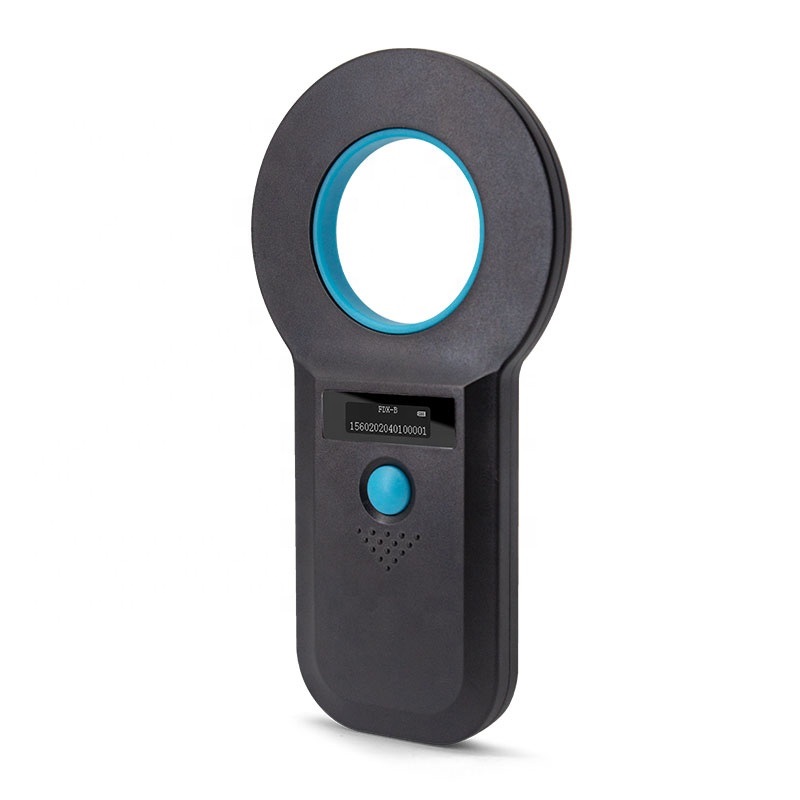

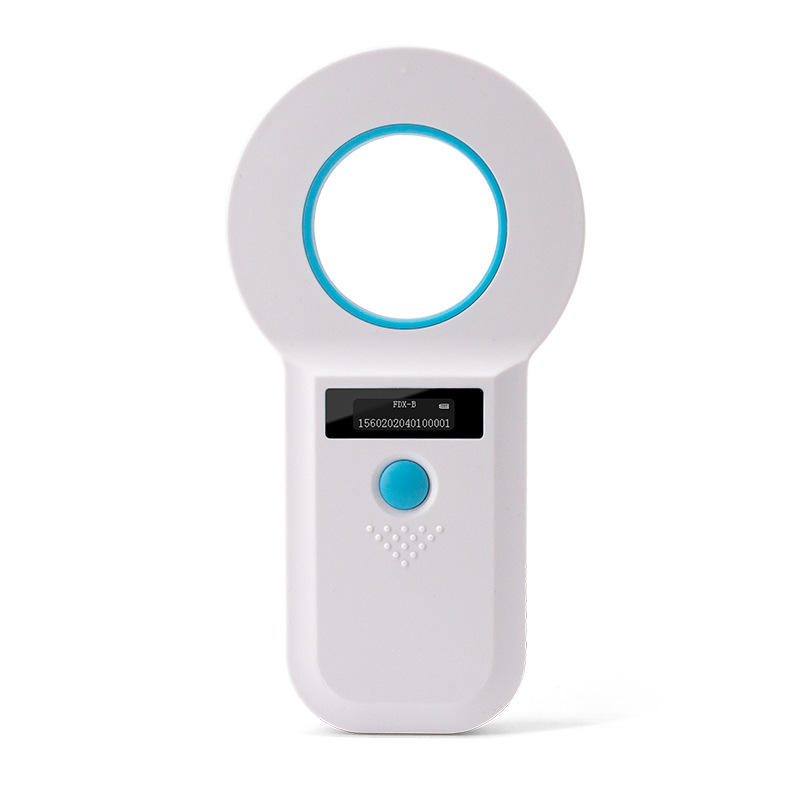

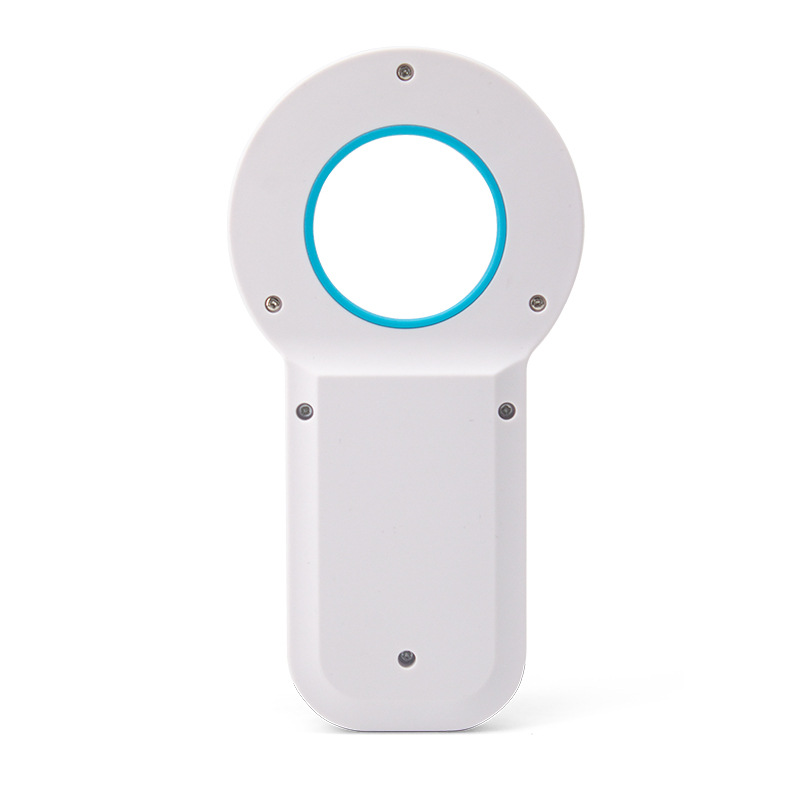

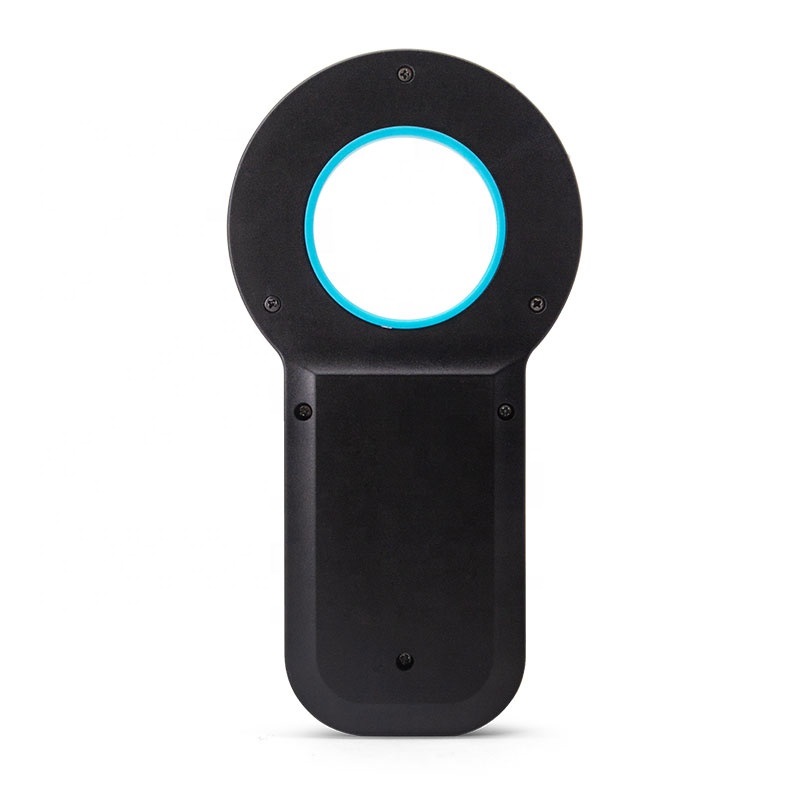

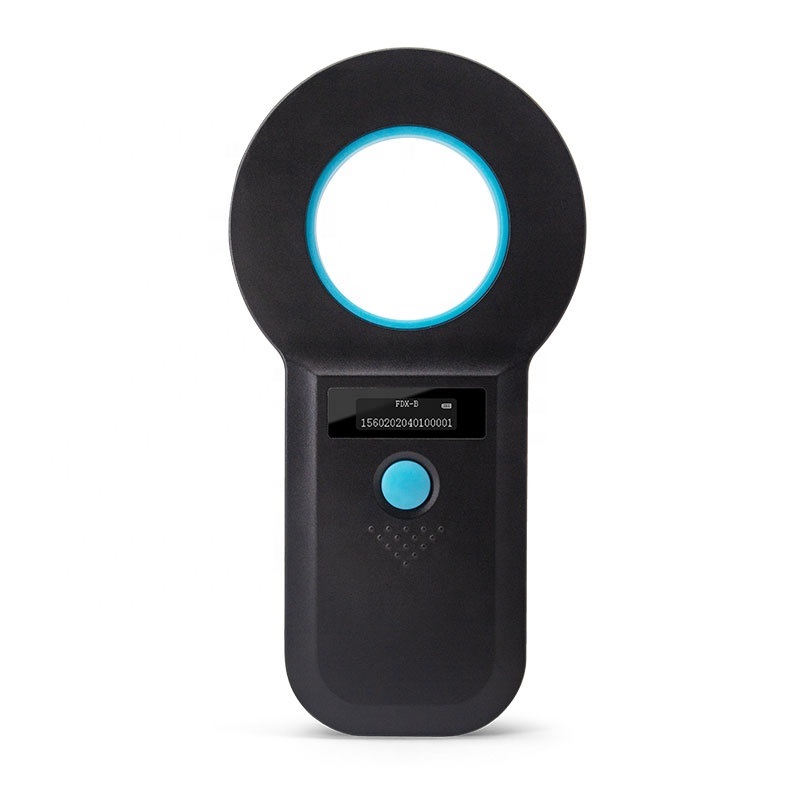

RFH90A FDX-B Handheld Animal Reader

Standard: ISO11784/785 FDX-B, EM ID
Frequency: 134.2KHz
Size: 168x60x15mm

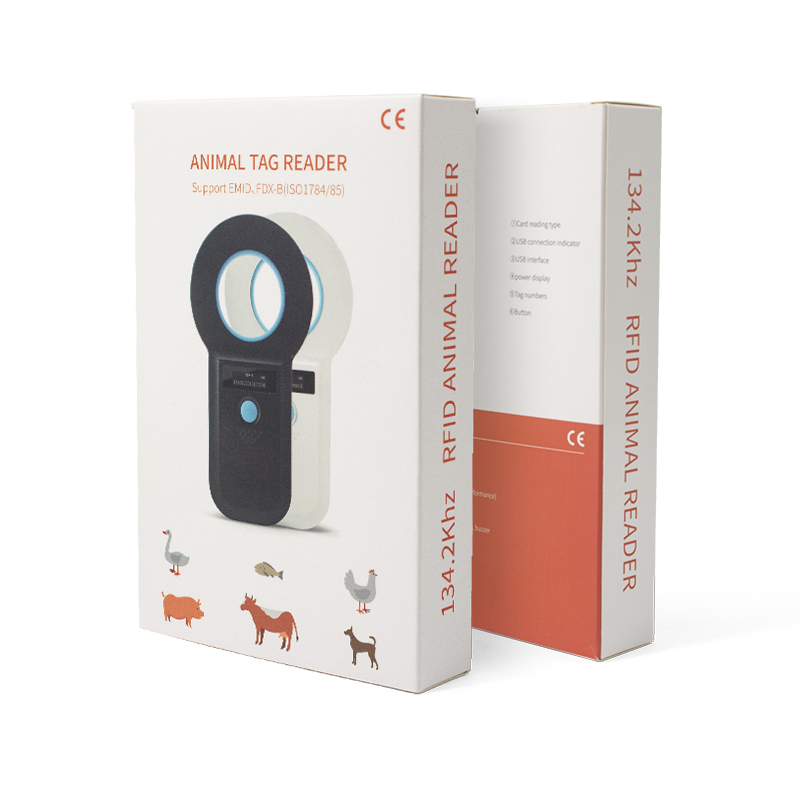

Packing: Individual Safe Packing
Material: ABS Cover
Product Description

This is a low frequency tag scanner that adopt wireless identification technology and it supports reading EMID and FDX-B (ISO11784/85) tags.

This scanner uses high brightness OLED display which can be seen clearly in bright light environment. It can store max 128 records of tag information with its built-in memory, users can upload the information to the computer through USB cable.

This product is stable with simple operation which is widely used for little animal management, resource management, railway inspection etc.


   Working frequency   134.2Khz
   Support tag   EMID, FDX-B (ISO11784/785)
   Reading range   2-12mm glass tube label >5cm
30mm animal ear mark >15cm (related to label performance)
   Standard   ISO11784/785
   Reading time   <100ms
   Prompt   0.91" high brightness OLED screen, buzzer
   power supply   3.7V (lithium battery)
   Memory   128 pieces of information
   Communication   USB2.0
   Language   English or customized
   Working temp   -10℃~50℃
   Storage temp   -30℃~70℃
   Package size   168MM*60MM*15MM
   Weight   120g
