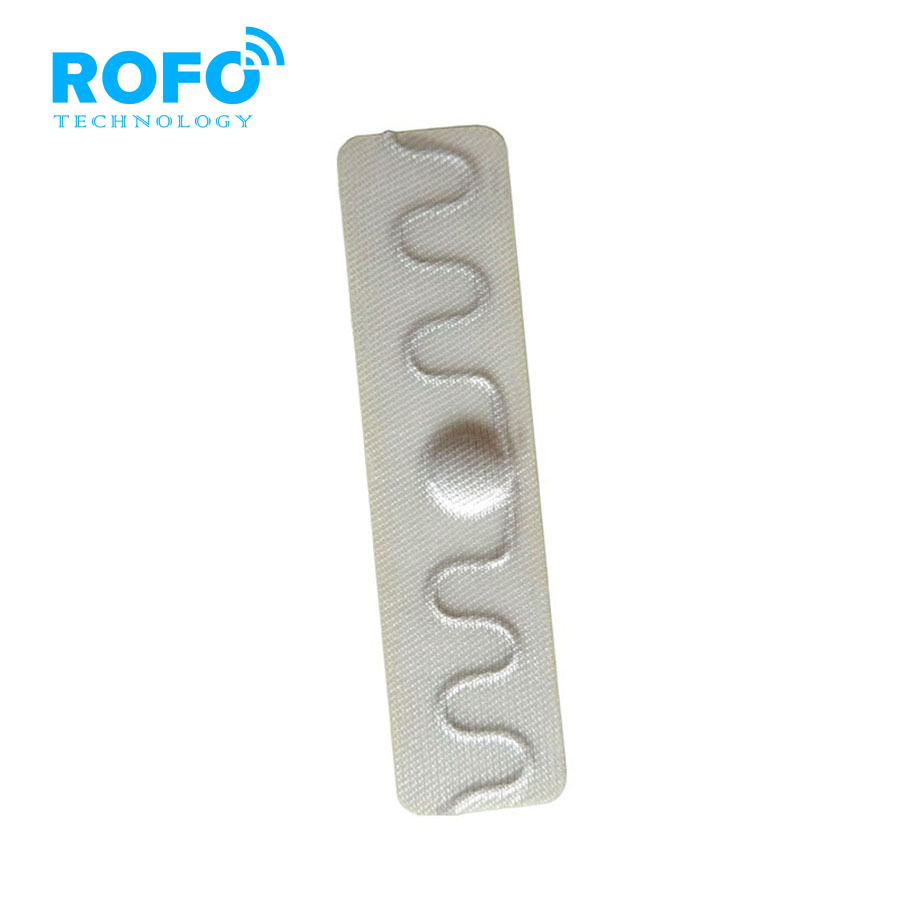

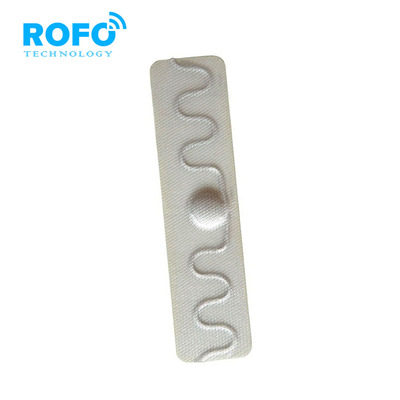

UHF fabric laundry tag, a kind of flexible washing label, especially suitable for clothing and fabric washing, install it in the linen, can withstand 180 degrees high temperature resistant ironing, industrial washing more than 200 times. Our UHF laundry tag has passed consistency test, as well as the EPC and User regional writing test before lleaving our factory, and our UHF laundry tag has very excellent reliability & performance consistency.
KEY FEATURES:
1. Waterproof, high temperature resistant.
2. Outstanding mechanical resistance ensures tag performance and endurance for reduced wear-and-tear.
3. Tested for over 200 cycles in real laundries!
4. Suitable for autoclave 5. best-in-class for confined field applications.
SPECIFICATIONS:
| Products Type | UHF Fabric RFID Laundry Tag For Cloth |
| Material | Full polyester |

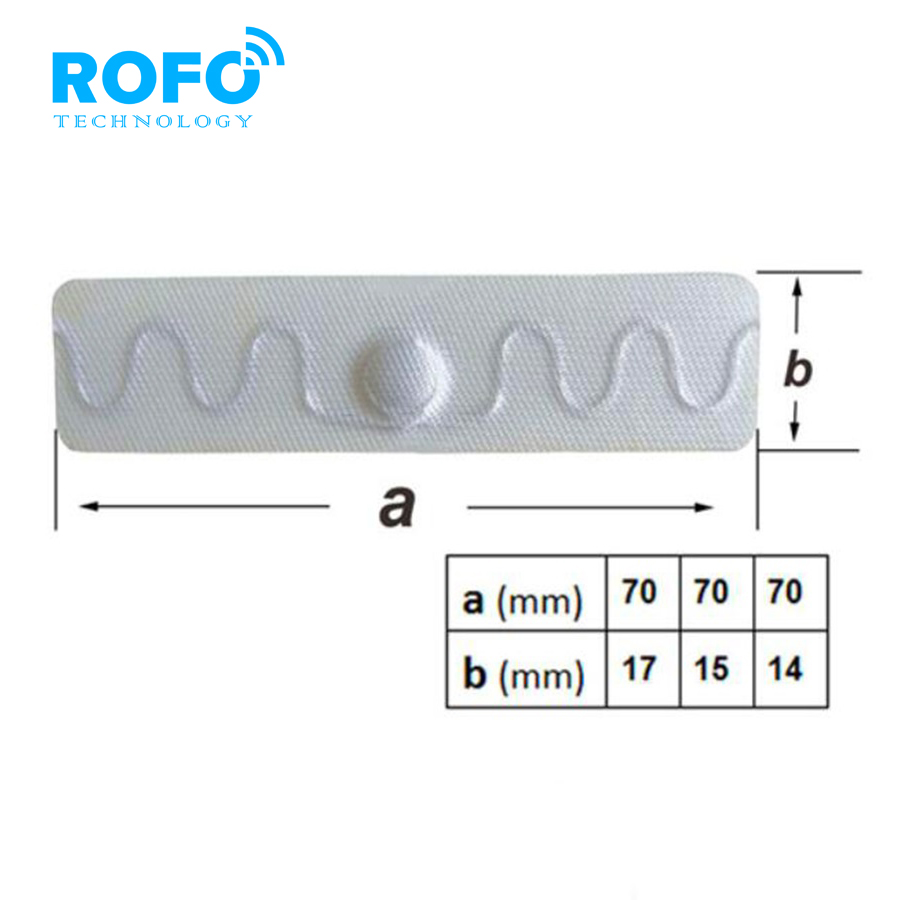

| Size | 70*14*1.8mm or 70*15*1.8 mm or 70*17*1.8mm or customized |
| Tag Weight (approx.) | 0.4g |
| Reading Distance | Up to 6 meters (up to 19 feets) |
| Frequency | 860 - 960 MHz |
| Protocol | ISO/IEC 18000-6C , EPC Class 1 Gen 2 |
| Tag Memory | 128 bits |
| Tag Warranty | First of 200 wash cycles or 3 years from ship date |
| Operating Power | Passive, operates through antenna's RF field |
| Storage Temperature | -40℃ to +120℃ |
| Typical Washing Cycle | Washing: +90℃, 15 minutes |
| Drying: +180℃, 3 minutes |
| Ironing: +200℃, 12 seconds |
| Water Extractor: 60 bar, 80 seconds |
| | Air Removal: +100℃, 5 minutes,0.1 bar |
| Autoclave | Sterilizing: +140℃, 10 minutes, 3.25 bar |
| | Drying: +45℃, 15 minutes,0.2 bar |
| Chemical Resistance | All Chemicals common to the washing process |
| Patching Instructions | +204℃, 12 seconds, 0.5kg/m² |
| Sample availability | Free samples are available upon request. |
KEY APPLICATIONS:
1. Tracking management
2. Factory/warehouse/hotel/hospital/amusement park
3. Hospital uniforms
4. Linens/Pallets/Canvas bags
5. Drycleaners
6. Use in hotel sheet/Attached to textile/Work clothing
7. Laundry
Installation instruction:
1. UHF fabric laundry label tag installation method
1) Method 1: Sew linen or dress directly
2) Method 2: Sew or install on cloth bag, and then sew the bag on linen;
Advantages: to achieve the life of washing linen,the bag can be cut down, and then installed in the new linen, such labels can be repeated in order to reduce the cost of using a single label;
Disadvantages: more time to install.
3) Method 3: the label iron on cloth directly (this way need to contact the label’s manufacturers some types of washing label support for this installation, some types of washing label do not support the installation, in addition, to support this way, the ironing also has specific requirements, please contact the label’s manufacturer in advance).
2. UHF fabric laundry label tag installation location selection
1) For the application of personnel management, label preferred installed on the shoulder and arm;
2) For application of hotel linen, label preferred installed in the corner, and not easy to be the user's attention area;
3) For application of cloth production control, label preferred installed on the edge (if it is to wash denim management, need to contact label’s manufacturer sales staff related products and performance consulting).
3. Polarization direction of UHF fabric laundry label tag
1) When the antenna is a standard circular polarized, the polarization matching of the tag and the reader antenna can not be considered when the tag is installed;
2) When the antenna is linear polarization, the polarization direction of the tag must be consistent with the polarization direction of the reader antenna, otherwise it will not be able to read and write or read and write performance is very poor.
