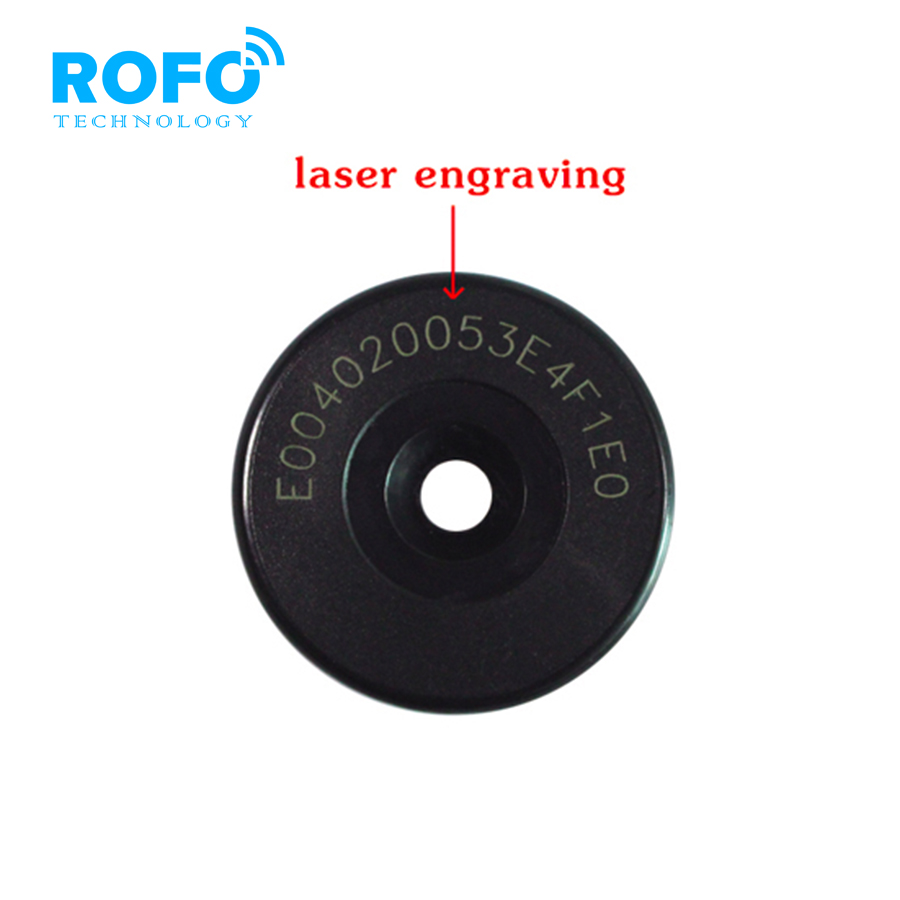

Metal tag is a kind of special RFID tags suitable for use in metallic environments.

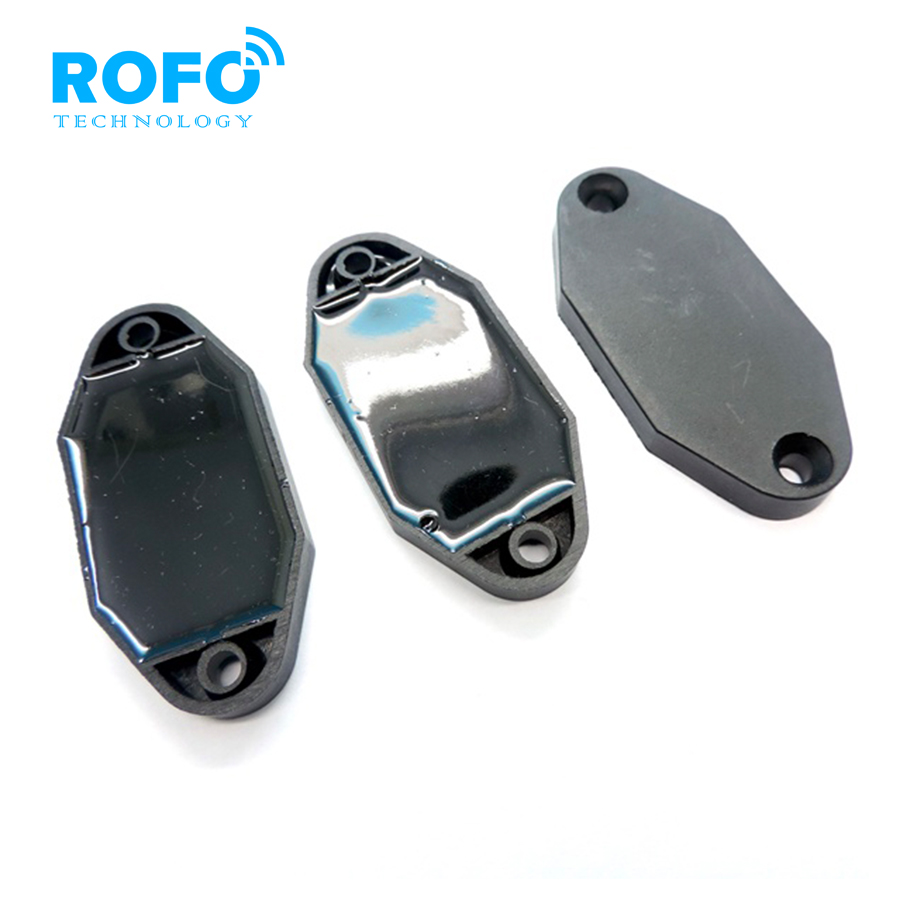

RFID on-metal tag is typically rugged, difficult to damage, and easy to weld, screw or otherwise attach. In general, metal creates problems for the life of RFID applications, which is why we offer special metal tags that resolve this issue. Metal tags are customized products – special tests are carried out for each and every one of the applications specified by our customers, with regard to the environment, the size of the tag, reader antenna and specific chip technology. We offer our customers samples for initial testing.
KEY FEATURES:
• Material: ABS(+Epoxy), PVC, PETG, PC, Paper

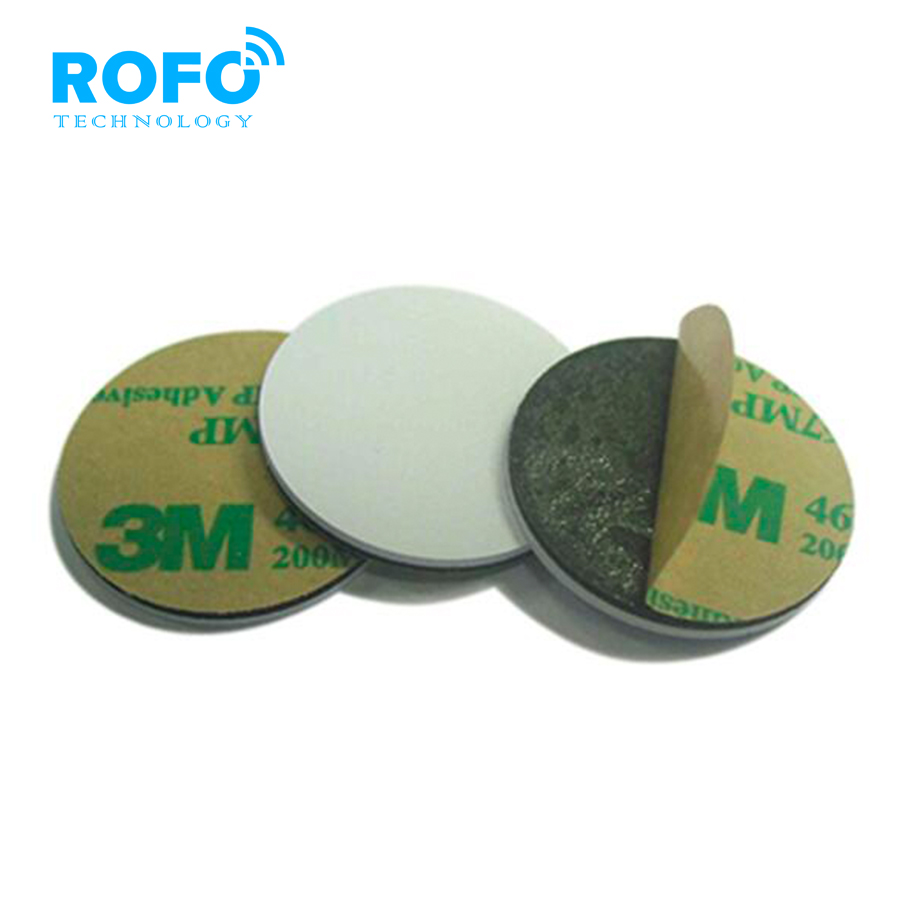

• Spacers: foam or ferrite
• Standard diameters: 25, 27, 30, 35, 40, 45, 50 mm

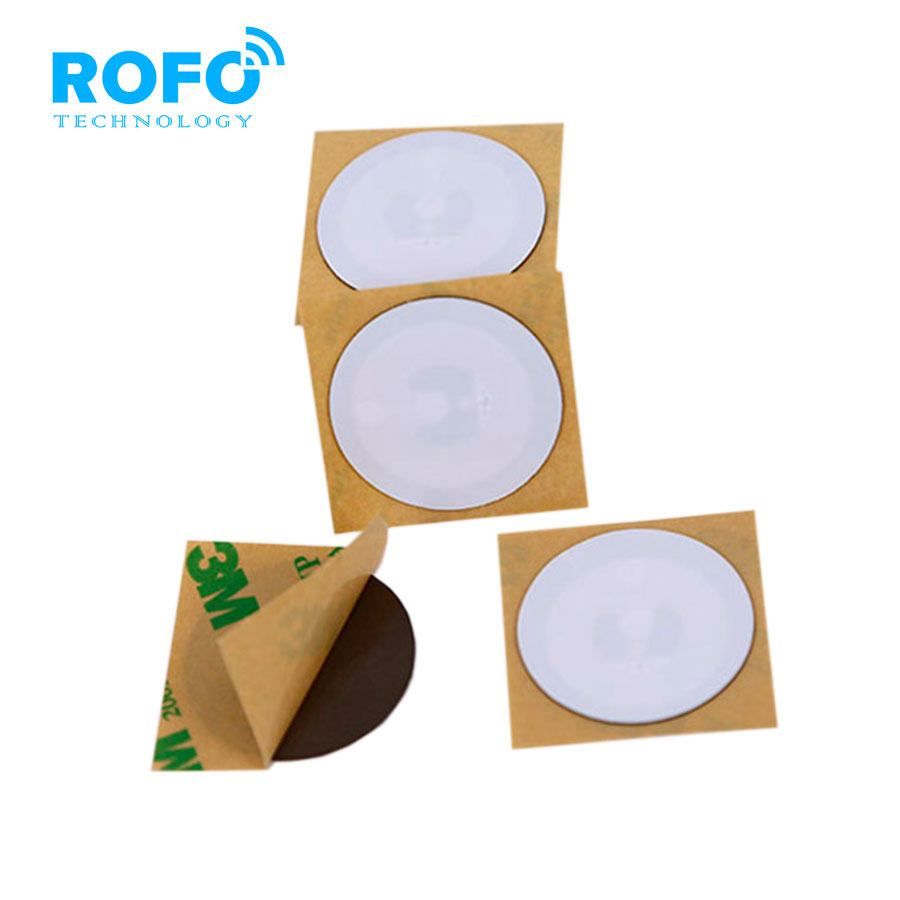

• Possibility of an adhesive layer for easy attachment
• Suitable for indoor and outdoor applications
• Can be personalized by full colour printing
AVAILABLE CHIPS:
| Manufacturer | 125 kHz | 13.56 MHz |
| EM Microelectronic | EM4102, EM4200 |
|
| NXP | Hitag®1, 2, S | MIFARE Ultralight®, MIFARE® Classic, MIFARE® Classic EV1, MIFARE® DESFire® EV1, MIFARE® DESFire® EV2, MIFARE Plus® I-Code®: SL1, SLI, SLIX, SLI-S, SLIX-S |
| Atmel | ATA5577 |
|
| Legic® |
| Prime: MIM256, MIM1024
Advant: ATC1024, ATC2048, ATC4096 |
